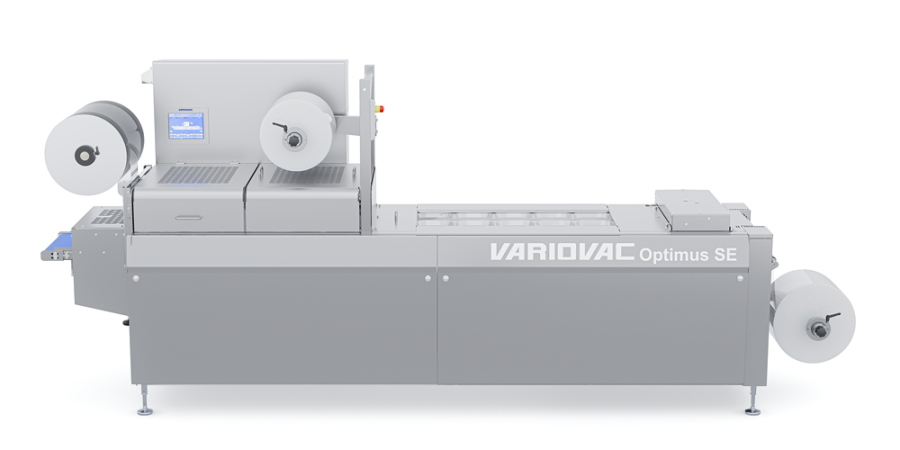

Optimus SE/SEL

The VARIOVAC Optimus SE and SEL, with frame lengths of 3 m and 3.5 m respectively, are ideal entry-level models for fully automatic packaging of food and non-food products. Thanks to their pre-configured standard equipment, the efficient SE/SEL thermoforming machines offer exceptionally short delivery times. Optimized additional options provide versatile application possibilities.

Send request
Technical specifications

Technical specifications

  • Frame length: 3 m (SE), 3,5 m (SEL)
  • Film wist: 420 mm (flexible film)
  • Available stroke lengths: 240, 260, 280, 300 oder 320 mm with RAB
  • Draw depth: max. 110 mm
  • Format: 2.1 (always included)
  • Packaging types: Sealing, Vacuum
  • Vacuum pump: 100 cbm/h
  • High-performance control: IPC 10" Touchscreen
  • Output: max. 9 cycles/min. (application-dependent)
  • Compressed air: min. 6 bar
  • Electrical voltage:

    3 x 230 V N/PE | 3 x 400 V N/PE | 50/60 Hz

Basic equipment

  • Vacuuming system

  • Trim removal system

  • Activated carbon filter

  • Guillotine (cross cutting)

  • Flat sealing plate

  • Automatic chain greasing

Options

  • MAP gas flushing system

  • Die cooling system

  • O2-safety kit

  • Gas buffer tank

  • Second guillotine

  • Print mark control

  • Frame sealing plates

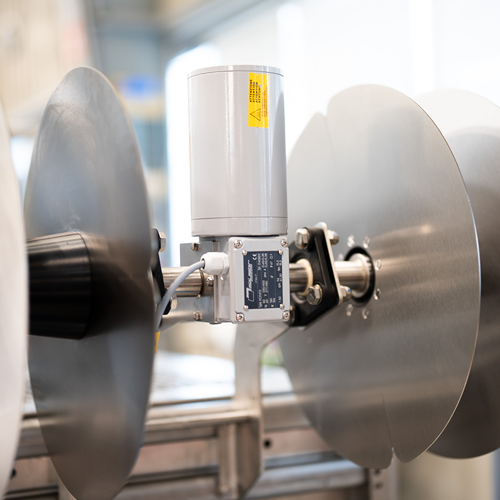

  • Rewinder of side strips

  • further packaging formats

Product information Download
Gallery

Gallery

Bild 1
Bild 2
Bild 3
Bild 4
Bild 5
Bild 6
Bild 7
Bild 8
Bild 9
Bild 10
