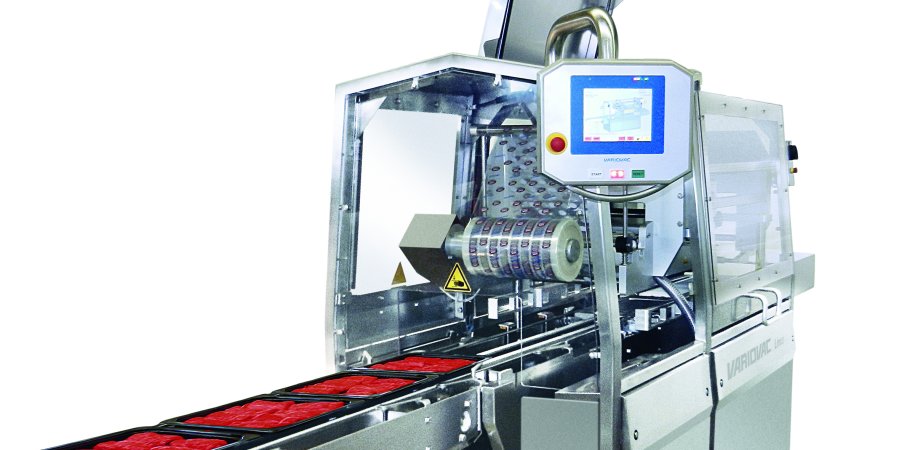

Linus 650

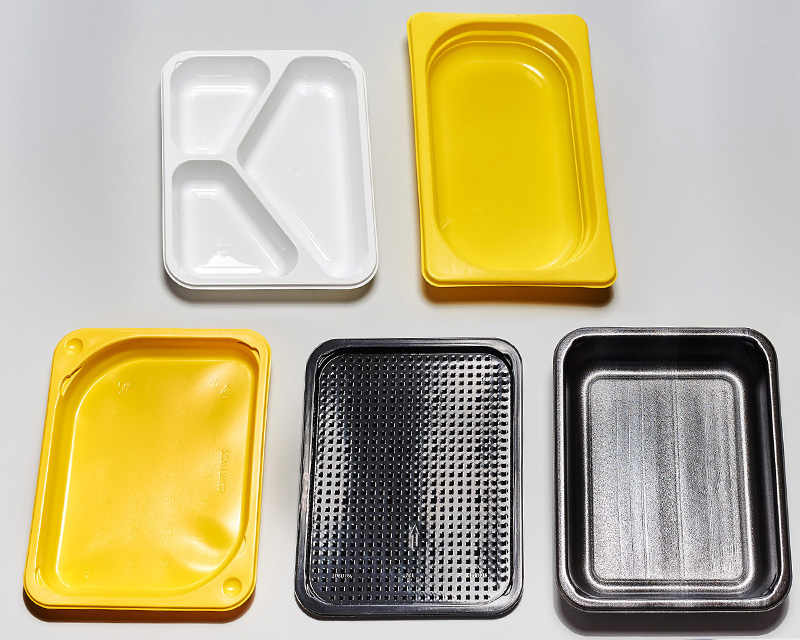

The Linus 650 is a fully automatic in-line tray sealer. The machine processes a wide variety of prefabricated trays reliably and efficiently. The tray infeed mechanism is available either as a conveyor belt or as a walking beam system. In combination with additional systems such as a de-nester, filling station, labeller, or pick & place robot, the Linus 650 meets the highest industrial standards.
Technical specifications
- Control: hinged 7,6“ touch panel, easy language selection, 80 storable programmes

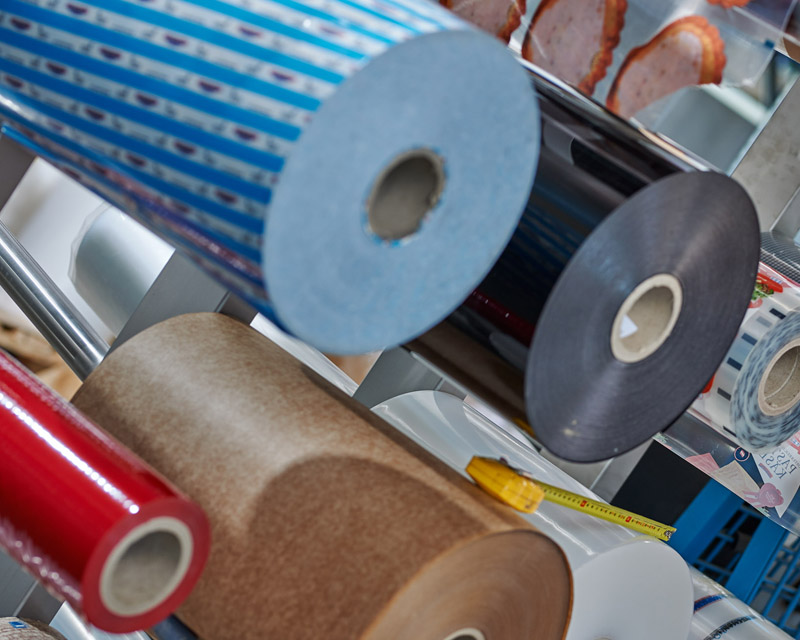

- Films: Ø max. 300 mm, core Ø 3" / 76 mm
- Max. film width: outside cut = 355 mm, inside cut = 315 mm
- Film transportation: electromotive, unwinding and rewinding of the film with pneumatic mandrel
- Compressed air needed: min. 6 bar
- Capacity: up to 15 cycles/min ≈ 60 trays/min
